Beer Can Label Dimensions Explained: Size Chart for Every Can
A standard 12 oz beer can label measures about 8.25 inches wide by 4.75 inches tall when printed as a full wrap. That single number is the starting point for almost every packaging decision a brewery makes, but it’s only one of six common sizes worth knowing.
Getting can label dimensions right matters more than most new brewers expect. A label cut a quarter-inch too short leaves a visible gap at the seam. One cut too tall wraps over the top or bottom rim and jams a labeling machine.Beer Can Label Dimensions This guide breaks down the real-world measurements for six of the most common cans on shelves today, plus the conversions, safe print areas, and finish options that most packaging guides skip entirely.
Unlike most articles on this topic, we’ll also cover something competitors rarely mention: how label height changes depending on whether you’re using a full wrap, a shrink sleeve, or a pressure-sensitive sticker because the same can can take three different label sizes depending on which method you choose.
What Are Can Label Dimensions?
Can label dimensions refer to the width and height of the printed material that wraps around a beverage can. Width is driven by the can’s circumference (essentially its diameter multiplied by pi), and height is driven by how much of the can’s vertical surface the label is meant to cover.Beer Can Label Dimensions Most breweries work with a design house or printer that supplies a trim size and a slightly larger bleed area so nothing important gets cut off during production.
Read More: How Far Is 20 Feet Visually? The Surprising Truth
Quick Conversion Table
| Unit | Approx. Value (Standard 12 oz Can Label) |
| Inches (width x height) | 8.25 in x 4.75 in |
| Centimeters | 20.96 cm x 12.06 cm |
| Millimeters | 209.6 mm x 120.6 mm |
| Feet | 0.6875 ft x 0.396 ft |
| Points (print) | 594 pt x 342 pt |
Quick Reference Table
| Can Type | Approx. Label Size (W x H) | Closeness Score (vs. Standard 12 oz) | Best Situation/Use |
| Standard 12 oz can | 8.25 in x 4.75 in | 10/10 (baseline) | Everyday six-packs, flagship beers |
| Sleek 12 oz can | 6.7 in x 4.75 in | 6/10 | Premium or lower-calorie branding |
| 16 oz tallboy | 8.25 in x 6 in | 7/10 | Single cans, taproom pours |
| 19.2 oz stovepipe | 8.25 in x 7 in | 6/10 | Convenience-store singles |
| 32 oz crowler | 9.5 in x 6.5 in | 4/10 | Taproom fill-and-go orders |
| 8 oz slim can | 6.7 in x 4.5 in | 5/10 | Sample packs, seltzers |

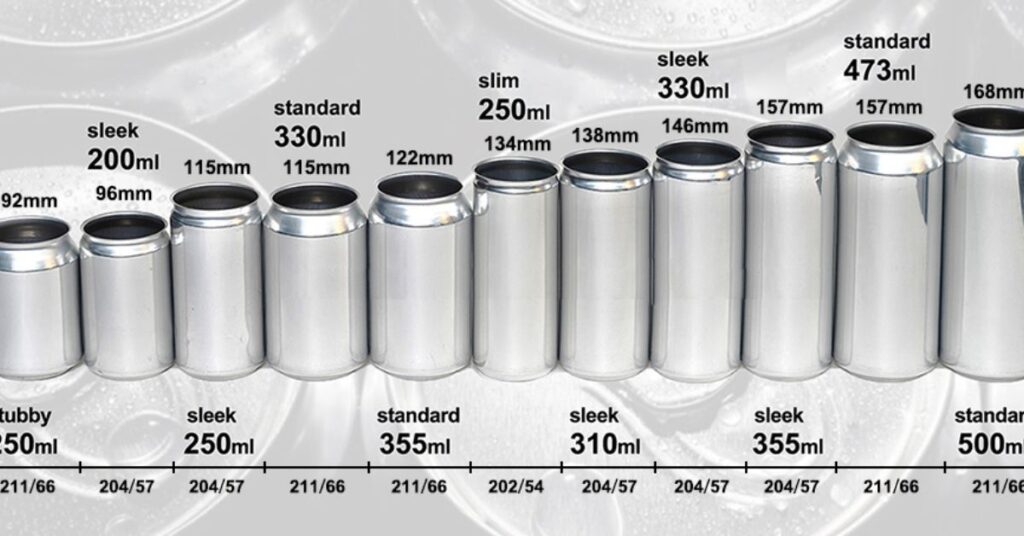

Standard 12 oz Beer Can Label Dimensions
The standard 12 oz can sometimes called the 211 can based on its diameter code is the most common format used by domestic brewers like Anheuser-Busch and most regional craft breweries.Beer Can Label Dimensions It has a diameter of roughly 2.6 inches and stands about 4.83 inches tall. Because a full wrap label needs to cover the visible metal without overlapping the top or bottom rim, the standard printable area comes out to about 8.25 inches wide by 4.75 inches tall.
This is the size most printable beer can labels templates are built around, and it’s the safest starting point for a first production run. Printers typically request a small bleed, often an eighth of an inch, so the design still looks intentional if the can rotates slightly during application.

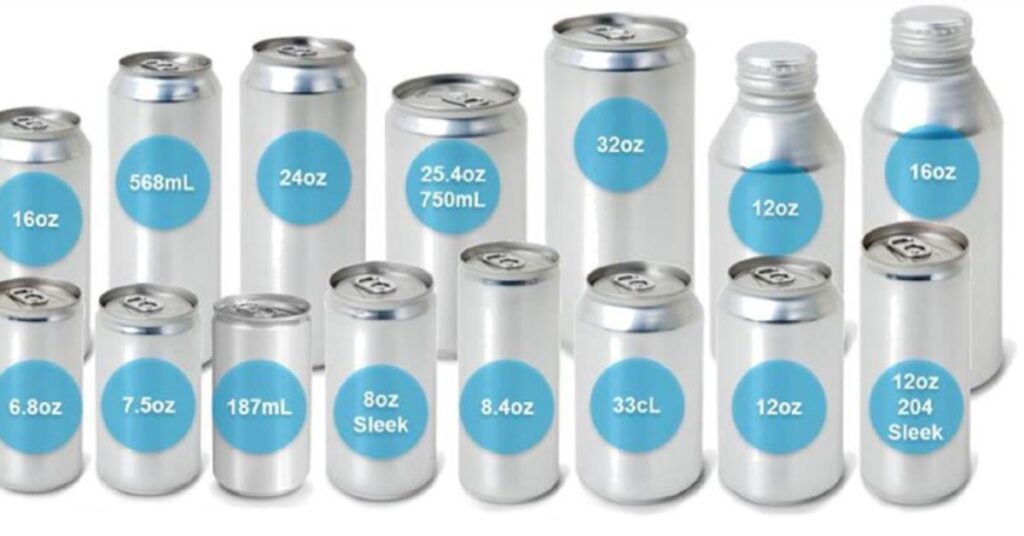

Sleek 12 oz Can Label Size
The sleek can holds the same 12 oz volume as a standard can but uses a noticeably narrower body, about 2.13 inches in diameter and 5.9 inches tall. That slimmer can diameter shrinks the label width to roughly 6.7 inches, even though the can is taller overall. Brands like White Claw and several light-beer lines use this shape because it reads as more premium on shelf.
Key distinction: because the sleek can is taller but narrower, a label sized for a standard can will never fit a sleek can, even though both hold the same 12 oz. Brewers switching shapes mid-line often get caught off guard by this and reorder an entire print run.
Read More: How Tall Is 80 Feet? 6 Surprising Everyday Examples
16 oz Tallboy Label Dimensions
The 16 oz tallboy keeps the same 2.6-inch diameter as a standard can but adds extra height, landing around 6.16 inches tall. That means the label width stays the same 8.25 inches, but the height stretches to roughly 6 inches to cover the extra surface.Beer Can Label Dimensions This is a favorite format for taprooms selling single cans to go, since it feels like more value without changing the can’s footprint on a shelf.
Because the diameter doesn’t change, brewers can often reuse the same label circumference measurement from their 12 oz run and simply extend the artwork vertically. That’s a real time-saver during design, though the added height does mean more room needs to be planned for nutrition facts and government warning text near the bottom.
19.2 oz Stovepipe Can Label Size
Often called a “stovepipe” because of its tall, narrow profile, the 19.2 oz can shares the standard 2.6-inch diameter but reaches about 7.28 inches in height. The label footprint grows to roughly 8.25 inches wide by 7 inches tall, making it one of the largest full-wrap labels a standard-diameter can will ever need. This size is common at convenience stores as a single-serve grab-and-go option.
Fitting a full-wrap label onto this much vertical space gives designers more room for brand identity elements a bigger logo, more color blocking, added texture but it also raises production cost since more aluminum can label material is used per unit.Beer Can Label Dimensions Brewers should factor that into per-can packaging budgets before committing to this format at scale.
32 oz Crowler Label Dimensions
The crowler is the outlier on this list: a wider, shorter can built for taproom fill stations rather than store shelves. Diameter runs close to 3 inches, with a height around 6.75 inches, giving a label size of roughly 9.5 inches wide by 6.5 inches tall. Companies like Oskar Blues, credited with popularizing the crowler format, helped standardize this shape across the craft beer industry.
Crowler labels are almost always printed on-demand using a pressure-sensitive label rather than a factory-applied full wrap label, since crowlers get filled and sealed one at a time behind the bar.Beer Can Label Dimensions That single difference pressure-sensitive versus full wrap changes the entire printing workflow, from paper stock to adhesive type, compared to every other can on this list.
8 oz Slim Can Label Dimensions
The 8 oz slim can shares the sleek can’s narrow 2.13-inch diameter but stands shorter, around 4.83 inches tall. That puts its label size at roughly 6.7 inches wide by 4.5 inches tall, the smallest full-wrap footprint on this list.Beer Can Label Dimensions Hard seltzer brands and sample-pack producers lean on this size because it lets a shopper try more flavors without committing to a full-size can.
Small labels leave very little room for error. A safe print area that would look fine on a 19.2 oz can can crowd out important text on an 8 oz slim can, so designers usually simplify artwork rather than shrinking a full-size design down to fit.
Read More: How Big Is 13 Inches? 6 Surprising Comparisons
Where Do Can Label Dimensions Appear in Daily Life?
Most people never think about can label dimensions unless they design packaging for a living, but the measurements shape everyday shopping decisions more than shoppers realize.Beer Can Label Dimensions A taller can on a store shelf reads as a better deal even when the ounces are identical to a shorter one, which is part of why the 16 oz tallboy and 19.2 oz stovepipe remain popular despite costing more in material.
Home brewers run into these numbers directly the first time they order custom beer can labels online. Most digital printing services ask for the can’s diameter and height up front, then generate a trim size and bleed automatically. Knowing the rough dimensions ahead of time instead of guessing saves a reprint when the first batch of labels shows up too short or too wide.
Grocery and convenience stores also use label height as an informal sorting cue. Beverage can label size differences are one reason taller cans get placed at eye level while shorter, wider formats like crowlers stay behind the counter shelf planning depends on how much visible label real estate a can offers.
FAQ’s
What is the standard label size for a 12 oz beer can?
A standard 12 oz can label measures about 8.25 inches wide by 4.75 inches tall. This is the most common can label dimensions figure used across the craft beer and macro-brew industry, and it’s the safest default for a first print run.
How do I measure can label dimensions without a ruler?
Wrap a strip of paper around the can, mark where it overlaps, then measure that strip against any object of known length, like a dollar bill (6.14 inches long). This gives a rough label circumference without needing a tape measure.
Are shrink sleeve labels the same size as full wrap labels?
Not exactly — shrink sleeves are usually cut slightly larger before shrinking. A shrink sleeve label starts oversized so heat can shrink it snugly around the can’s curves, including the tapered top, while a full wrap label is cut close to the final size.
Do label dimensions change based on the printing method?
Yes. A pressure-sensitive label and a full wrap label can differ by a quarter-inch or more on the same can, since pressure-sensitive stock needs extra margin for the adhesive backing and application tolerance.
What safe print area should I leave around can label artwork?
Most printers recommend keeping key text and logos at least 0.125 to 0.25 inches inside the trim edge. This label bleed buffer protects against small shifts that happen naturally during the labeling process.
Final Thoughts
Six cans, six different label footprints and every one of them starts with the same two numbers: diameter and height. Whether it’s the everyday standard beer can label size on a 12 oz can, the stretched-out label on a 19.2 oz stovepipe, or the oversized wrap on a 32 oz crowler, getting can label dimensions right the first time saves a reprint and keeps artwork looking intentional instead of stretched or cropped.
If there’s one takeaway to keep, it’s this: always confirm the can’s exact diameter and height with your printer or can supplier before finalizing artwork, since even a small difference in shape sleek versus standard, tall versus short changes the entire label size.
